應用

ISO 6743-4中除HFDR、HFD S和HFDT以外的，溫度范圍在-40℃～+100℃的液壓流體；

溫度范圍在-40℃～+70℃的水性流體；

溫度范圍在0℃～+70℃范圍內的水。

執行標準

膠管執行GB/T3683標準的SN/ATS型，符合DIN EN853 SN 型、ISO 1436 SN/ATS型，也符合SAE J517 100RIAT/IOOR2AT型標準要求。

外觀

外表黑色，有光面(601)或布紋(601W)。

Application

Hydraulic fluid within -40℃～+100℃, except HFD R, HFD S and HFD T under |SO 6743-4;

Aqueous fluid within -40℃～+70℃;

Water within 0℃~+70℃;

Applicable Standards

Rubber hose according to standard GB/T 3683 SN/ATS, DIN EN853 SN,ISO 1436 SN/ATS and SAE

J517 100RIAT/IOOR2AT.

Appearance

Visually black, with polish 16011 or wove paltern(601W).

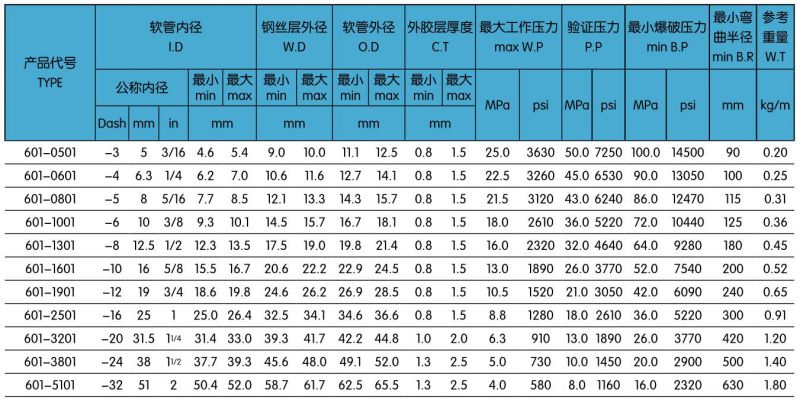

一層鋼絲-結構特性

膠管由耐油的內膠層、一層鋼絲編織增強層、耐天候性優良的外膠層組成。

Structural Characteristics

The rubber hose consists of oil-resistant inner layer, one layer of steel wire braided reinforcement, and weather resistant outer layer.

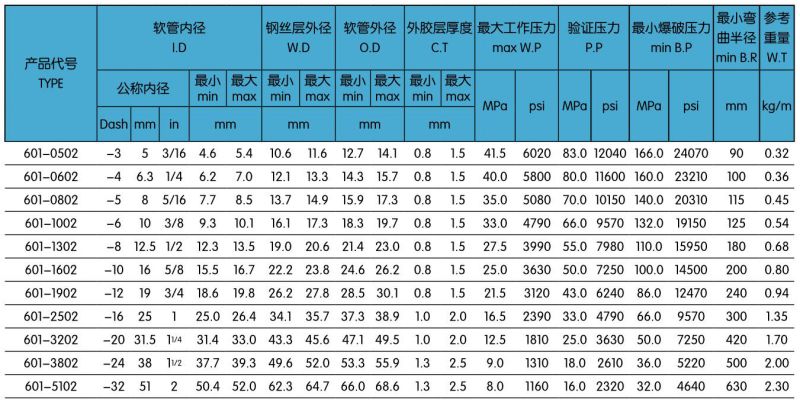

兩層鋼絲-結構特性

膠管由耐油的內膠層、二層鋼絲編織增強層、耐天候的外膠層組成。

Structural Characteristics

The rubber hose consists of oll-resistant inner layer, two layers of steel wire braided reinforcement and weatherresistant outer layer.
