應用

ISO 6743-4中除HFDR、HFD S和HFDT以外的，溫度范圍在-40℃～+125℃的液壓流體；

溫度范圍在-40℃～+90℃的水性流體；

溫度范圍在0℃～+90℃范圍內的水。

執行標準

膠管執行GB/T 3683標準的SN/ATS型，符合DIN EN853 SN 型、ISO 1436 SN/ATS型，也符合SAE J517

100RIAT/1OOR2AT型標準要求。

外觀

外表黑色，有光面(608)或布紋1608W。

Application

Hydraulic fluid within -40℃～+125℃, except HFD R, HFD S and HFD T under SO 6743-4;

Aqueous fluid wihin-40℃~+90℃;

Water wihin 0℃~+90℃.

Applicable Standards

Rubber hose according to standard GB/T3683 SN/ATS, DIN EN853 SN,ISO 1436 SN/ATS and SAE J517100RIAT/IOOR2AT.

Appearance

Visuadlly black with polish1608) or wove patiern1608WI.

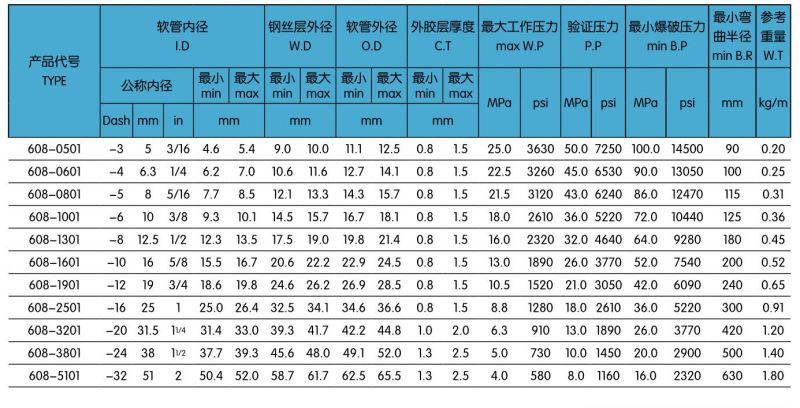

一層鋼絲-結構特性

膠管由耐油耐高溫的內膠層、一層鋼絲編織增強層、耐高溫耐天候性優良的外膠層組成。

Structural Characteristics

The rubber hose consists of heat and oll resistant inner layer, one layer of steel wire braided reinforcement, heat resistant andweatherproof outer layer.

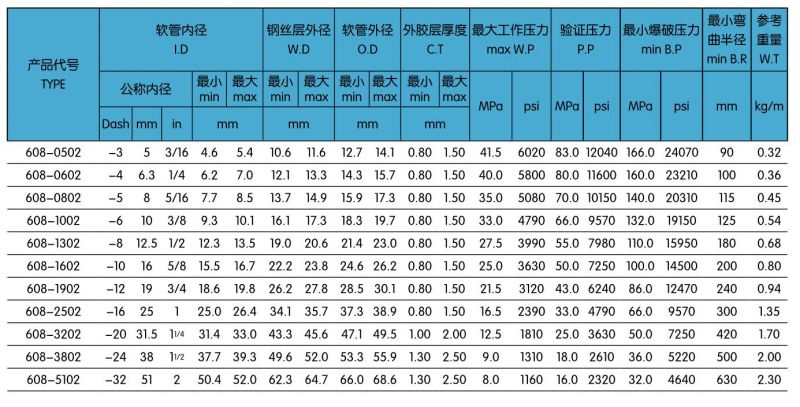

兩層鋼絲-結構特性

膠管由耐油耐高溫的內膠層、二層鋼絲編織增強層、耐高溫耐天候的外膠層組成。

Structural Characteristics

The rubber hose consists of heat and oll resistant inner layer, two layers of steel wire braided reinforcement, heat resistant and weatherproof outer layer.
